ESP Cable

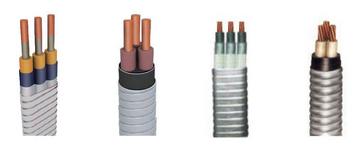

Round and flat cable solutions.

Conductor types: Solid, stranded, compact stranded, insulation layer (PP, EPDM, PI)

jacket (EPDM and nitrile) and cable armour.

Temperature ratings: 90C, 120C, 150C, 205C

Voltage Range: 3KV, 4KV, 5KV, 6KV

Armour Types: Galvanised steel, stainless steel, monel

Production standards: GB/T16750; IEEE, API Recommended Practice

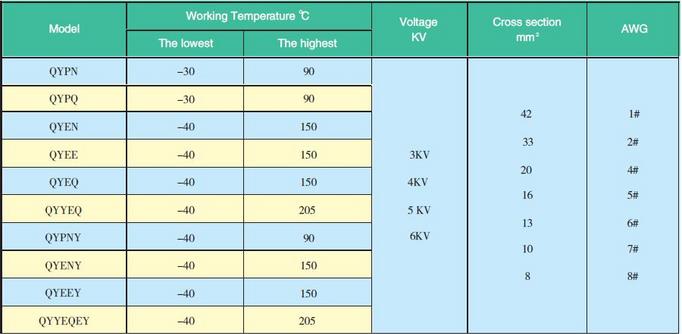

ESP Cable Specifications

ESP cable solutions:

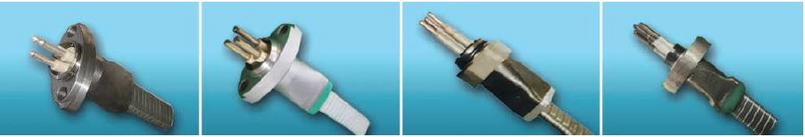

MLE Pothead Connectors

Motor Lead Extensions
